Pinça de forquilla giratòria amb fixació elevadora de classe 2 amb 1220 mm de longitud

Inici / Tots els fitxers adjunts / Pinça de forquilla giratòria amb fixació elevadora de classe 2 amb 1220 mm de longitud

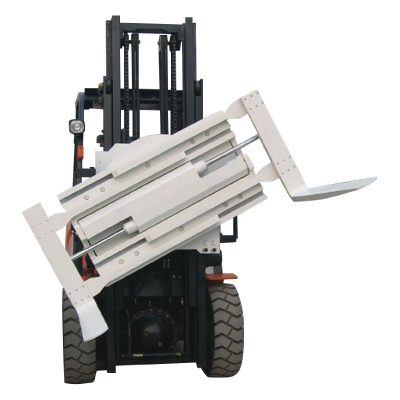

Pinça de forquilla giratòria amb fixació elevadora de classe 2 amb 1220 mm de longitud

Les pinces de forquilla es poden utilitzar per subjectar les mercaderies per a realitzar una rotació continua de 360 graus, i es poden utilitzar per transferir les mercaderies de la safata de producció de gamma alta a la safata de transport més barata. Es poden utilitzar per transferir les mercaderies de gamma alta. la producció a una safata de transport més barata, amb la qual cosa s’estalviarà el cost de la safata.

Vídeos


Capacitat @ Centre de càrrega

(kg @ mm)

CatàlegClasse de muntatgeRange d'obertura

(mm)

Longitud de la forca (A) (mm)Amplada del marc (mm)Centre de gravetat vertical (CGV) (mm)Centre de gravetat horitzontal (CGH) (mm)Gruix efectiu (ET) (mm)Pes

(mm)

1600@600SLR-A601FR2410-16601070940275212280585
1600@600SLR-A602FR2410-16601200940265230280600
2300@600SLR-B602FR3465-180010701015270345345696
2300@600SLR-B603FR3465-180012201015265345345705
4000@600SLR-C604FR4420-1960120013003623203201150

Nota


1) Obtingueu la capacitat de càrrega integral de la muntacàrrega o la fixació de la fàbrica de carretons elevadors
2) Requereix un muntacàrregues per augmentar els dos jocs addicionals de cruïlla.
3) L’interval d’obertura és la distància entre l’interior de la forquilla.
4) Les forquilles es poden basar en les necessitats de l’usuari per instal·lar tot tipus de braç de pinça especial.

Detalls ràpids


Estat: Nou
Lloc de procedència: Fujian, Xina (continental)
Nom de marca: HUAMAI
Tipus: Camió de paletes amb motor
Power Souce: Motor AC
Capacitat de càrrega nominal: 1600 kg
Màx. Alçada d'elevació: 1600mm
Min. Alçada d'elevació: 1200mm
Longitud de la forca: 1220 mm, 1070 mm
Amplada de la forquilla: 150mm
Mides generals: 2680x1225x2120mm
Certificació: ISO9001
Servei postvenda subministrat: no es proporciona servei a l'estranger
Capacitat de càrrega: 1600 kg
Classe de muntatge: 2
Rang d'obertura: 410-1660 mm
Amplada del marc: 940 mm
Gruix efectiu: 280 mm
Pes: 585 kg


A Class 2 forklift attachment rotating fork clamp is a type of forklift accessory used for handling and transporting cylindrical loads such as drums, pipes, and rolls. The clamp attaches to the forklift and rotates 360 degrees, allowing the operator to easily pick up, move, and position the load.

The rotating fork clamp is designed to fit Class 2 forklifts, which are medium-duty forklifts typically used in manufacturing, construction, and warehousing. The clamp is attached to the forklift by a quick-release mechanism or by bolts, depending on the model. Once attached, the clamp can be easily raised and lowered by the forklift’s hydraulic system.

One of the main advantages of the rotating fork clamp is its versatility. It can handle a wide range of cylindrical loads, making it a convenient accessory for a variety of material handling tasks. The rotating feature also allows the operator to easily position the load in tight spaces or areas with limited access.

Another advantage of the rotating fork clamp is its ability to handle heavy loads. The clamp is designed to securely hold the load in place, reducing the risk of injury and damage to the load and the environment. The rotating feature also makes it easier to move the load in different directions, making it more efficient and cost-effective.

In conclusion, the Class 2 forklift attachment rotating fork clamp is a useful tool for handling and transporting cylindrical loads. It is versatile, efficient, and cost-effective, and is an essential tool for companies that handle heavy loads on a regular basis.

, ,
