Venda de les extensions de forquilla elevadora de palets tipus FE1-16 per a palets

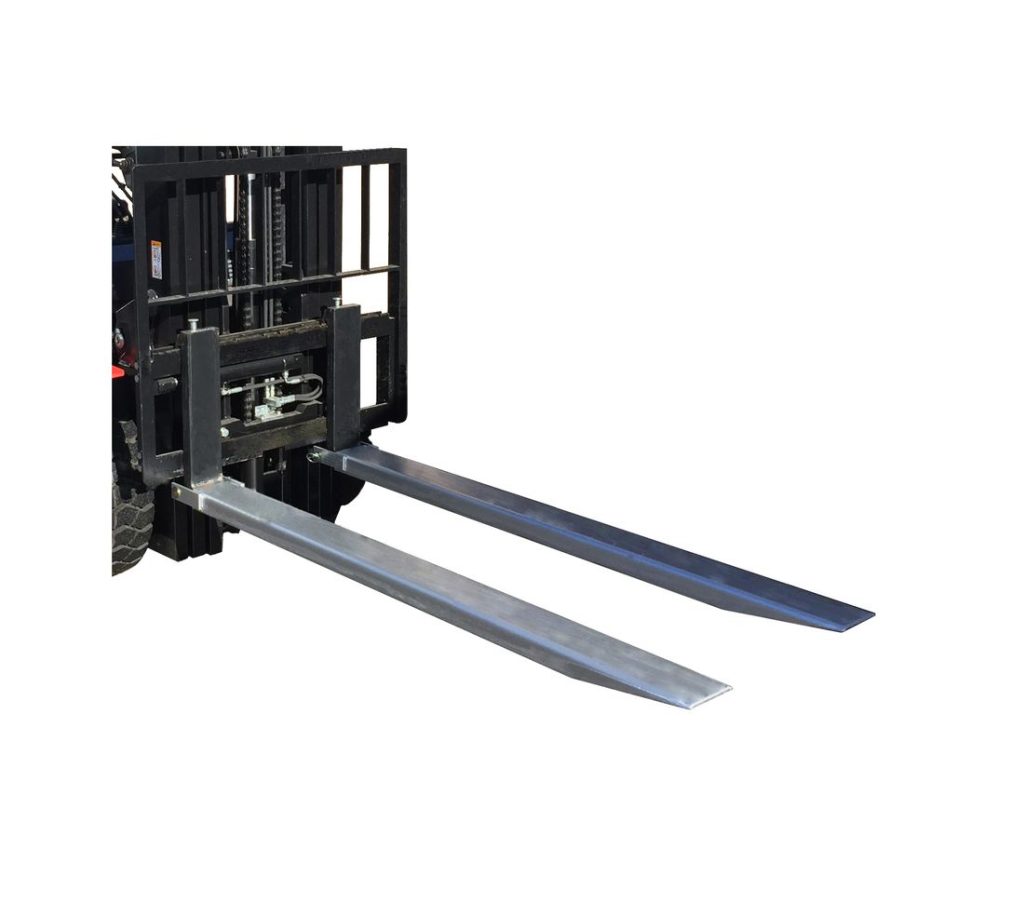

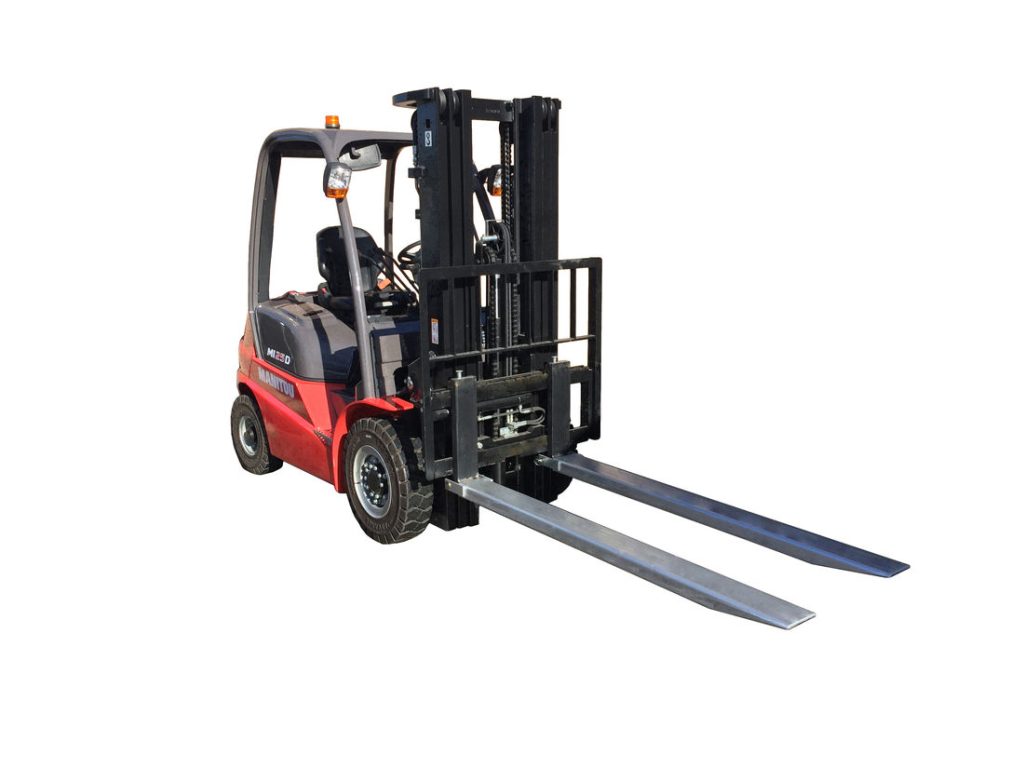

Fork Extensions-FE Type

The Fork Extensions is the best choice to extend the length of fork to a maximum of 1.6 times as long as fork

Other sizes are available according to customer's requirements.

Surface treatment:painted or galvanized finish

Especificació

---

Tipus	Model	Llargada (mm)	Max .Fork Size(mm)	Unitat de pes (kg/pair)	Capacitat (kg/mmLC)
Double-sided	FE1-16	1600	100*45	50	3000/600
	FE1-18	1800		56
	FE1-21	2100		66
	FE1-24	2400		75
	FE2-16	1600	130*50	59	4500/600
	FE2-18	1800		66
	FE2-21	2100		77
	FE2-24	2400		88
	FE3-16	1600	150*55	91	6500/600
	FE3-18	1800		102
	FE3-21	2100		119
	FE3-24	2400		136
	FE3-30	3000		170
	FE4-18	1800	165*65	112	8500/600
	FE4-21	2100		132
	FE4-24	2400		152
	FE4-30	3000		186

Nota:

---

Requires contacting the manufacturer of your fork truck for written approval for the use of any fork truck attachment.

Standards require that the length of fork extensions do not exceed the lift truck fork length by

more than 50%. (e.g.,Fork extension used on 48" long lift truck forks should not exceed 72".)

The use of extensions effect lift truck capacity. Contact lift truck manufacturer for load capacity

reductions.

---

Introducció

HUAMAI fork extensions is the best choice to extend the length of fork to the max of 1.6 times length fork. Other sizes are available according to customers requirements. And surface treatment are optional between painted and galvanized.

Característiques:

• Made from high tensile grade steel
• Zinc plated for corrosion protection (Type SL Painted)
• High Safe Working Load (SWL) rating
• Supplied with toggle locking pins
• Fitted with rating plate
• Supplied with instructions

• Custom Dimension Available

Especificació

Forkl Extension Slipper Type	Longitud (mm)	Max.Fork Size (mm)	Unit Weight (Kg/pair)	Capacity (Kg)/ Load Center (mm)
FE1-16	1600	100 X 45	50.0	3000/600
FE1-18	1800		56.0
FE1-21	2100		66.0
FE1-24	2400		75.0
FE2-16	1600	130 X 50	59.0	4500/600
FE2-18	1800		66.0
FE2-21	2100		77.0
FE2-24	2400		88.0
FE3-16	1600	150 X 55	91.0	6500/600
FE3-18	1800		102.0
FE3-21	2100		119.0
FE3-24	2400		136.0
FE3-30	3000		170.0
FE4-18	1800	165 X 65	112.0	8500/600
FE4-21	2100		132.0
FE4-24
